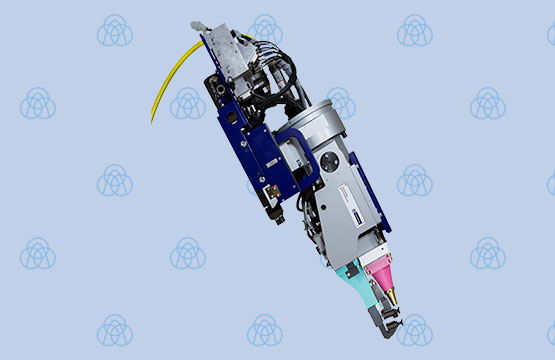

product name:LSK05-01
category:thyssenkrupp
Brand:thyssenkrupp
manufacturer:thyssenkrupp
use:Laser welding
major client:

description
features
parameter
Case

One tool, many capabilities

How to achieve vehicle weight reduction? How to improve the body strength? How to optimize the passive safety of vehicles? ——Laser welding provides an effective solution.

ThyssenKrupp has designed a compact and flexible body laser welding system-LSK05 series for well-known car companies such as German Volkswagen and Audi, which can not only meet the welding of aluminum alloy plates, but also meet the requirements of galvanized sheets and super Welding of strong steel body sheet metal.

LSK05-01 is our core product for the automated laser welding process. Through its many possible uses and modular construction, it shows a high degree of flexibility. With the continuous development of technology, we are developing more based on LSK05-01. Multiple functional laser tool heads.

? 最大激光功率≤8kw（可定制最大20kw）

? 雙壓指系統(tǒng)夾緊力≤ 700N（可在線無級設定）

? 焊接速度快≤200mm/s

? 高效的光學鏡組，可有效降低激光能量損耗

? 光學鏡組可實現整體±180°旋轉調整，適用不同工藝需求

? 采用螺旋噴嘴，有效延長護鏡使用壽命及減少壓縮空氣使用量

? Y軸和Z 軸自帶平衡浮動機構，可補償工件±10mm誤差

? 聚焦鏡下方安裝有兩塊護鏡，對聚焦鏡雙重保護

? 噴嘴上方設有便捷式護鏡抽屜模塊，并可實時監(jiān)控護鏡污染狀態(tài)

? 獨特的一體化除塵模塊，可有效減少焊接過程中的飛濺和煙塵

? 定制的防護衣，可有效防護飛濺、粉塵等異物對設備的影響

? 采用總線通訊控制方式，可支持各種不同總線形式
